Showing all 4 results
-

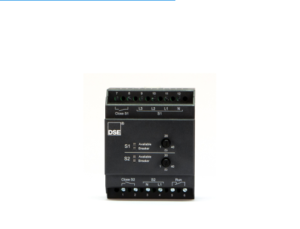

Read moreDSE327 Automatic Transfer Switch Controller
The DSE327 is an Automatic Transfer Switch Control Module designed to monitor the voltage of an incoming AC supply from two different sources. This could be from both generator or mains (utility), or a combination of both. The module monitors S1 (Source 1) and in the event of a failure issues a start command to S2 (Source 2). The DSE327 can be ordered in 110 V and 230 V variants. Once S2 is available and producing an output within limits, the module controls the transfer device and switches the load from S1 to S2. Once the S1 supply returns to within limits, the module commands a load return to S1 and shuts down S2. Various timing sequences are available to prevent nuisance starting on minor supply breaks. OVERALL SIZE 72 mm x 90.5 mm x 65 mm (2.8” x 3.6” x 2.6”) WEIGHT 0.3 kg -

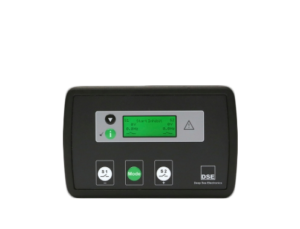

Read moreDSE331 Auto Transfer Switch Control Module
The DSE331 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both. The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available. OVERALL SIZE 180 mm x 116 mm x 42 mm (7.1” x 4.6” x 1.7”) PANEL CUTOUT SIZE 154 mm x 98 mm (6.0” x 3.9”) MAXIMUM PANEL THICKNESS 8.0mm (0.3”) WEIGHT 0.36kg -

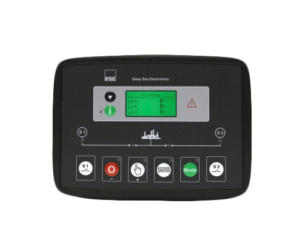

Read moreDSE334 Auto Transfer Switch Control Module
The DSE334 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both. The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available. OVERALL SIZE 215 mm x 158 mm x 42 mm (8.5” x 6.2” x 1.6”) PANEL CUTOUT SIZE 182 mm x 137 mm (7.2” x 5.4”) MAXIMUM PANEL THICKNESS 8.0mm (0.3”) WEIGHT 0.52kg -

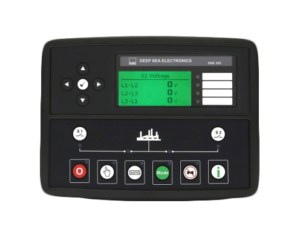

Read moreDSE335 Auto Transfer Switch Control Module
The DSE335 Automatic Transfer Switch Control Module has been expertly developed to monitor the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both. The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available. OVERALL SIZE 240 mm x 181 mm x 42 mm (9.4” x 7.1” x 1.6”) PANEL CUTOUT SIZE 220 mm x 160 mm (8.7” x 6.3”) MAXIMUM PANEL THICKNESS 8.0mm (0.3”) WEIGHT 0.9kg
