Showing all 6 results
-

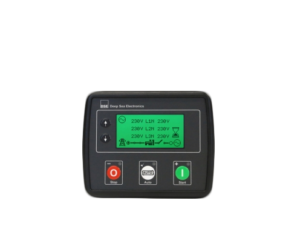

Read moreDSE4520 MKII Auto Mains (Utility) Failure Control Module
The DSE4520 MKII is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure. THE MODULE CAN BE CONFIGURED FOR USE AS AN AUTO START CONTROL MODULE. OVERALL SIZE 140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”) PANEL CUTOUT SIZE 118 mm x 92 mm (4.6" x 3.6") MAXIMUM PANEL THICKNESS 8.0 mm (0.3”) WEIGHT 0.26kg -

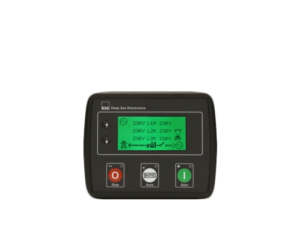

Read moreDSE4620 Auto Mains (Utility) Failure Control Modules
The DSE4620 is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure. OVERALL SIZE 140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”) PANEL CUTOUT SIZE 118 mm x 92 mm (4.6" x 3.6") MAXIMUM PANEL THICKNESS 8.0 mm (0.3”) WEIGHT 0.28kg -

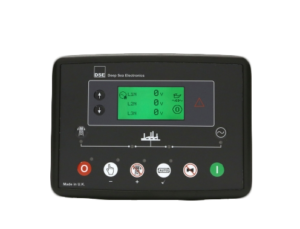

Read moreDSE6020MKII Auto Mains (Utility) Control Module
The DSE 6020 MKII is an Auto Mains (Utility) Failure Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets. OVERALL SIZE 216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”) PANEL CUTOUT SIZE 184 mm x 137 mm (7.2" x 5.3") MAXIMUM PANEL THICKNESS 8.0 mm (0.3”) WEIGHT 0.48kg -

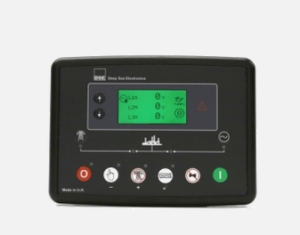

Read moreDSE6120 MKIII Auto Mains (Utility) Failure Control Module
The DSE6120 MKIII is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, genset applications. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC. The module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offers an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements. The extensive list of features includes enhanced event and performance monitoring, remote communications & PLC functionality. The modules can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available. OVERALL SIZE 216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”) PANEL CUTOUT SIZE 184 mm x 137 mm (7.2” x 5.3”) MAXIMUM PANEL THICKNESS 8.0 mm (0.3”) WEIGHT 0.5kg -

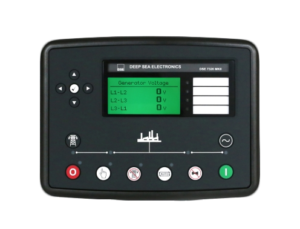

Read moreDSE7320 MKII Auto Mains (Utility) Failure Control Module
The DSE7320 MKII is a powerful, new generation Auto Mains (Utility) Failure genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications. Featuring a new Dual Core main processor and extended memory, the module provides faster and more powerful processing power, returning faster operational responses on intensive applications and increased functionality, with data logging facility. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LED's, remote PC's and via SMS text alerts (with external communication device). OVERALL SIZE 245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0") PANEL CUTOUT SIZE 220 mm x 160 mm (8.7" x 6.3") MAXIMUM PANEL THICKNESS 8.0 mm (0.3") -

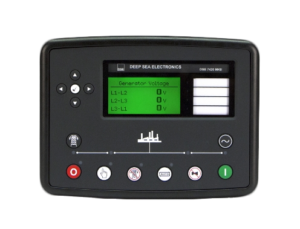

Read moreDSE7420 MKII Auto Mains (Utility) Failure Control Module
The DSE7420 MKII is an intelligent, powerful auto mains (utility) failure control module with high-level features and functionality. The control module is the first module in the DSE range to include in-built SNMP and features an embedded web server. The module is suitable for a wide range of single-set gas and diesel applications. The control module features an enhanced dual core main processor and extended memory capacity. This allows the module to deliver a faster more powerful performance to return quicker operating responses on complex applications and provides enhanced memory storage for high level data logging functionality. OVERALL SIZE 245 mm x 184 mm x 51 mm (9.6” x 7.2” x 2.0”) PANEL CUTOUT SIZE 220 mm x 160 mm (8.7" x 6.3") MAXIMUM PANEL THICKNESS 8.0 mm (0.3”) WEIGHT 0.88kg
