Showing all 8 results
-

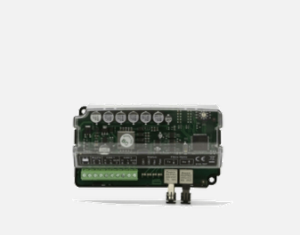

Read moreDSE124 CANbus Extender
The DSE124 CANbus extender has been designed to extend a multi-set comms load share link or engine CANbus. OVERALL SIZE 134 mm x 77 mm x 49 mm (5.3” x 3.0” x 1.9”) WEIGHT 0.2kg -

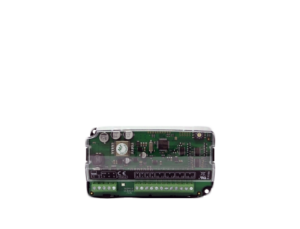

Read moreDSE2130 DSENet® Input (8) Expansion Module
The DSE2130 is an input expansion module providing 8 additional inputs to the control module. Four of these can be configured for use as analogue inputs. Up to 4 x DSE2130 modules can be linked together to provide up to 32 additional inputs. Designed to give greater flexibility for meeting complex industry generator control specifications. All configurations are controlled within the host control module. OVERALL SIZE 134 mm x 76 mm x 49 mm (5.3” x 3.0” x 1.9”) WEIGHT 0.18kg -

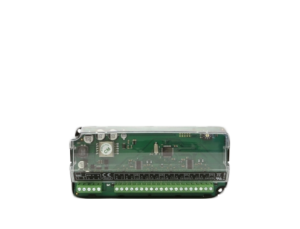

Read moreDSE2133 DSENet® RTD/Thermocouple Input (8) Expansion Module
The DSE2133 is an RTD/thermocouple input expansion module providing 8 additional inputs to the control module. Up to 4 DSE2133 modules can be linked together to provide up to 32 additional inputs. Designed to give greater input flexibility for meeting complex industry generator control specifications. Inputs can be configured as RTD or thermocouple and are controlled from within the host control module. OVERALL SIZE 165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”) WEIGHT 0.22kg -

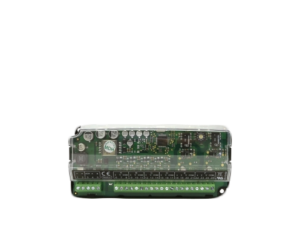

Read moreDSE2152 DSENet® Analogue Output (6) Expansion Module
The DSE2152 is an analogue output expansion module providing 6 additional configurable outputs to the control system. Up to 4 x DSE2152 modules can be linked together to provide up to 24 additional output options. Designed to give greater output flexibility for meeting complex industry generator control specifications. The 6 outputs can be configured as 0-10 V or 4-20mA. All configurations are controlled within the host control module. OVERALL SIZE 165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”) WEIGHT 0.24kg -

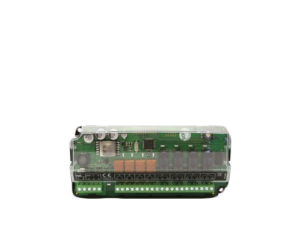

Read moreDSE2157 DSENet® Output (8) Expansion Module
The DSE2157 is an output relay expansion module providing 8 additional outputs to the control system. Up to 10 x DSE2157 modules can be linked to together to provide increased output options. Designed to give greater output flexibility for meeting complex industry generator control specifications. The module includes eight configurable relay contacts with LED indicators. These can be configured as 4 normally open and 4 normally closed. All configurations are controlled within the host control module. OVERALL SIZE 165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”) WEIGHT 0.28kg -

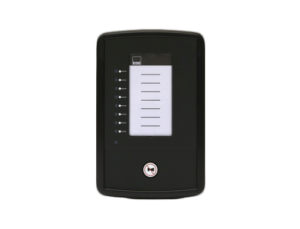

Read moreDSE2548 DSENet® LED Output (8) Expansion Module
The DSE2548 is an output expansion module that can display a maximum of eight individual LED indications. Each indication is user configurable via the host module. Up to 10 DSE2548 modules can be linked together to provide up to 80 additional LED outputs. The DSE2548 can be located up to a maximum of 1 km (0.6 mile) away from the host control module. OVERALL SIZE 180 mm x 116 mm x 43 mm (7.1” x 4.6” x 1.7”) PANEL CUTOUT SIZE 154 mm x 98 mm (6.0” x 3.9”) MAXIMUM PANEL THICKNESS 8.0mm (0.3”) WEIGHT 0.36kg -
Read moreDSE815 AVR USB to RS485 Converter
The DSE815 provides an interface between the AVR and a PC, using an RS485 connection allowing access to the AVR settings via the DSE Configuration Suite PC Software. DIMENSIONS 90 mm x 50 mm x 25 mm 3.5" x 2" x 1" -
Read moreDSEG0123 Load Share Lines Interface
The DSEG0123 Analogue Load Share Lines Interface converts DSE AMSC / MSC digital load share communications to universal analogue load share lines, allowing DSE paralleling controllers to seamlessly deliver kW and kvar load sharing with third party manufactured products. The DSEG0123 also allows the DSEG8600, DSEG8900, DSE8610 MKII, DSE8610, DSE7510 and DSE5510 controllers to be added to an existing DSE load sharing application and deliver kW and kvar load sharing across all DSE controllers within the system. The flexibility of the DSEG0123 makes expanding existing systems extremely simple. OVERALL SIZE 164.5 mm x 76.4 mm x 48.9 mm (6.48” x 3.0” x 1.93”) WEIGHT 0.2kg
