Showing all 5 results
-

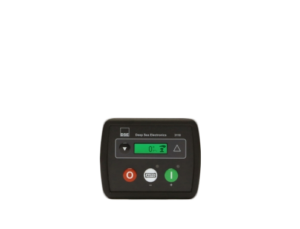

Read moreDSE3110 Manual & Auto Start Control Module
The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode. OVERALL SIZE 98 mm x 79 mm x 40 mm (3.9” x 3.1” x 1.6”) PANEL CUTOUT SIZE 80 mm x 68 mm (3.1 " x 2.7") MAXIMUM PANEL THICKNESS 8.0 mm (0.3”) WEIGHT 0.16kg -

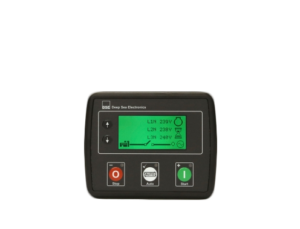

Read moreDSE4610 Auto Start Control Module
The DSE4610 is a compact Auto Start Control Module that has been developed to provide an outstanding range of features within a compact enclosure. OVERALL SIZE 140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”) PANEL CUTOUT SIZE 118 mm x 92 mm (4.6" x 3.6") MAXIMUM PANEL THICKNESS 8.0 mm (0.3”) WEIGHT 0.28kg -

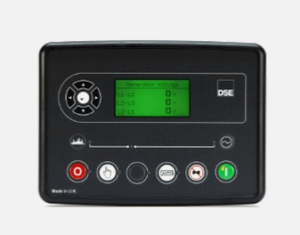

Read moreDSE6110 MKIII Auto Start Control Module
The DSE6110 MKIII is an Auto Start Control Module suitable for a wide variety of single, diesel or gas, genset applications. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC. The module includes USB connection and dedicated DSENet® terminals for system expansion. The module is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offers an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements. The extensive list of features includes enhanced event and performance monitoring, remote communications & PLC functionality. The modules can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available. OVERALL SIZE 216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”) PANEL CUTOUT SIZE 184 mm x 137 mm (7.2” x 5.3”) MAXIMUM PANEL THICKNESS 8.0 mm (0.3”) WEIGHT 0.5kg -

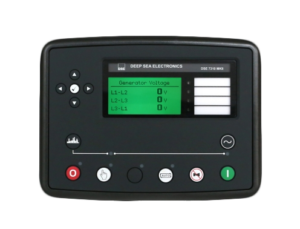

Read moreDSE7310 MKII Auto Start Control Module
The DSE7310 MKII is a powerful, new generation auto start genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications. Featuring a new Dual Core main processor and extended memory, the module provides faster and more powerful processing power, returning faster operational responses on intensive applications and increased functionality, with data logging facility. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LED's, remote PC's and via SMS text alerts (with external communication device). OVERALL SIZE 245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0") PANEL CUTOUT SIZE 220 mm x 160 mm (8.7" x 6.3") MAXIMUM PANEL THICKNESS 8.0 mm (0.3") -
Read moreDSE7410 MKII Auto Start Control Module
The DSE7410 MKII is an intelligent, powerful auto start control module with high-level features and functionality. The control module is the first module in the DSE range to include in-built SNMP and features an embedded web server. The module is suitable for a wide range of single-set gas and diesel applications. The control module features an enhanced dual core main processor and extended memory capacity. This allows the module to deliver a faster more powerful performance to return quicker operating responses on complex applications and provides enhanced memory storage for high level data logging functionality. OVERALL SIZE 245 mm x 184 mm x 51 mm (9.6” x 7.2” x 2.0”) PANEL CUTOUT SIZE 220 mm x 160 mm (8.7" x 6.3") MAXIMUM PANEL THICKNESS 8.0 mm (0.3”) WEIGHT 0.88kg
