Showing 49–54 of 54 results
-

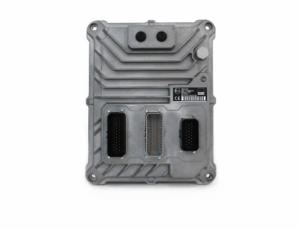

Read moreDSEM640 Programmable Controller (68 I/O)
The DSE M640 provides advanced programmable control options for vehicles and off-highway machinery and has been developed specifically for mobile applications. Sealed to IP67, the device incorporates a breather to allow the unit to equalise pressure and reduce condensation whilst filtering out liquids and other contaminants. The unit features Ethernet, USB, CAN and configurable I/O. Inside the unit is a powerful 32 bit processor with a 220 MHz clock speed for outstanding operating response times. There are also 4 independent CAN interfaces, J1939, CAN Open and Raw CAN. Flexible user programming is provided via CODESYS 3.5. OVERALL SIZE 49 mm x 240 mm x 190 mm (H x W x D) 1.46" x 9.45" x 7.48" (H x W x D) WEIGHT 1.5 kg -

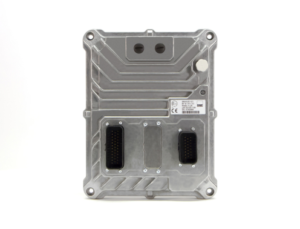

Read moreDSEM643 Programmable Controller (34 I/O)
The DSE M643 provides advanced programmable control options for vehicles and off-highway machinery and has been developed specifically for mobile applications. Sealed to IP67, the device incorporates a breather to allow the unit to equalise pressure and reduce condensation whilst filtering out liquids and other contaminants. The unit features Ethernet, USB, CAN and configurable I/O. Inside the unit is a powerful 32 bit processor with a 220 MHz clock speed for outstanding operating response times. There are also 4 independent CAN interfaces, J1939, CAN Open and Raw CAN. Flexible user programming is provided via CODESYS 3.5. OVERALL SIZE 49 mm x 240 mm x 190 mm (H x W x D) 1.46" x 9.45" x 7.48" (H x W x D) WEIGHT 1.5 kg -

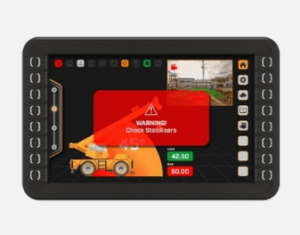

Read moreDSEM812 (Keyed) 12" Programmable Display
The DSEM812 is a 12" Programmable Display designed for use on vehicles and off highway machinery and is the largest display in DSE's programmable display range. Developed for use as a standalone product or with the DSEM64x programmable controllers, the DSEM812 provides users with outstanding flexibility. The M812 is configured using CODESYS 3.5 or Qt, can be RAM or panel mounted and has the option to use in portrait or landscape orientation. OVERALL SIZE 330 mm x 210 mm x 63.5 mm (12.99” x 8.26” x 2.5”) WEIGHT 2.12 kg -

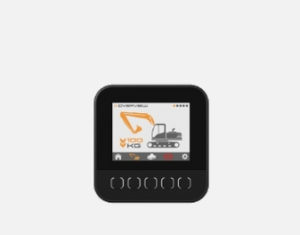

Read moreDSEM835 3.5" Programmable Display
The DSEM835 is a 3.5" programmable display designed for use on vehicles and off highway machinery. The DSEM835 provides users with outstanding flexibility. The DSEM835 is configured using CODESYS 3.5. Key Features of the product include: Multi-Functional Inputs, Flexible Outputs, Heated Optically Bonded Display and Tier 4F Stage 5 Engine Support. OVERALL SIZE 112.5 mm x 115 mm x 49 mm (4.438” x 4.53” x 1.93”) WEIGHT < 1 kg CUT-OUT 80 mm diameter (3.15") -

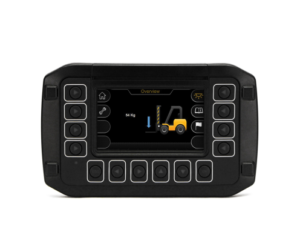

Read moreDSEM840 4.3" Programmable Display
The DSEM840 is a 4.3" programmable display developed for use on vehicles and off-highway machinery. It offers an enhanced 64 MB of SDRAM, 20 MB of CODESYS and 20 MB of User Data memory and an additional Cortex M7 400 MHz clock speed. The display provides high levels of flexibility for multiple application types and is configured using CODESYS 3.5. The M840 can be used as a stand alone product or with additional M-Series products to create extremely powerful applications. OVERALL SIZE 131 mm x 208 mm x 56 mm (5.15” x 8.2” x 2.2”) WEIGHT < 1 kg CUT-OUT 163 mm x 98 mm (6.42" x 3.86") -

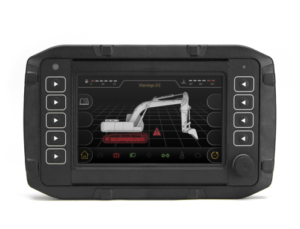

Read moreDSEM870 7" Programmable Display
M870-04 Qt (Touchscreen) Variant - Now Available. Option to Mount in Landscape/Portrait Mode. The DSEM870 is a 7" programmable display designed for use on vehicles and off highway machinery. Developed for use as a standalone product or with the DSEM640 programmable controller, the DSEM870 provides users with outstanding flexibility. The M870 is configured using CODESYS 3.5 (M870-01 / M870-02 / M870-03) or Qt (M870-04). OVERALL SIZE 272 mm x 165 mm x 81 mm (10.8” x 6.3” x 3.15”) WEIGHT 1.25kg CUT-OUT 231 mm x 133 mm (9.09" x 5.24")
