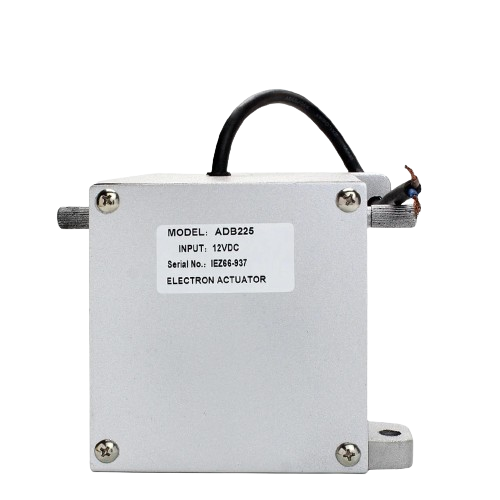

ADB225-12V

Related products

  • ADB225-24V
    Read more

    ADB225-24V

    ADB225-24V
    The 225 Series electric actuator is a rotary output, linear torque, proportional servo that is typically used as an engine fuel control positioning device. The 225 combines fast operation, multi voltage usage, wider rotation angles, and proven reliability. 225 Series Electric Universal Actuator 12/24 V DC Return spring Easy installation, universal design Rapid response to transient Multiple mounting positions 2.2 lbf·ft [3.0 N·m] torque, 25º rotation Includes serrated shaft, lever (LE1400-2), and commercial connector with mating harness (CH251-2134)
    Read more
  • 3408326
    Read more

    3408326

    3408326
    CUMMINS ELECTRONIC FUEL CONTROL ACTUATOR 3408326 Diesel engine PT pump actuator 3408326 is a kind of Actuator for PT pump. This series actuator for generator is electric design special for PT pump of the diesel generator. Model: 3408326 Type: Normally Closed, for more than 300 KW Genset Compatible EFC: 3044196 Applicable Genset: NTA855 Particular for PT Pump Working stroke: 23 Internal installing model Rated voltage: 12 V; 24 V Response Time: 20 ms Weight: 0.86 kg Suitable for wherewith good working environment, frequently load change and the high requirement to frequency stabilization Cummins 3408326 Actuator applicable to generator set more than 300 KW, work with normally closed controller
    Read more
  • 3408324
    Read more

    3408324

    3408324
    CUMMINS ELECTRONIC FUEL CONTROL ACTUATOR 3408324 Diesel engine PT pump actuator 3408324 is a kind of Actuator for PT pump. This series actuator for generator is electric design special for PT pump of the diesel generator. Model: 3408324 Type: Normally Closed,0-300 KW Compatible EFC: 3044196 Applicable Genset: NTA855 Particular for PT Pump Working stroke: 23 Internal installing model Rated voltage: 12 V; 24 V Response Time: 20 ms Weight: 0.86 kg Suitable for wherewith good working environment, frequently load change and the high requirement to frequency stabilization Cummins 3408324 Actuator applicable to generator set lower than 300 KW, work with normally closed controller
    Read more
  • ADC120-24V
    Read more

    ADC120-24V

    ADC120-24V
    The 120 Series Electric Actuator is a rotary-output, proportional servo. This electromechanical actuator is used as an engine fuel control positioning device. An internal spring provides fail-safe operation by forcing the actuator to the fuel shutoff position when the actuator is de-energized. 120 Series Universal Actuator 12/24 V DC Small, low-cost, low-friction actuator Internal spring provides fail-safe operation 1.0 lbf·ft [1.35 N·m] torque Suitable for rotary or small in-line fuel pumps on small carburetors Ideal for fuel systems on engines up to 150 hp [112 kW] Includes commercial connector with Mating Harness (CH251-2134)
    Read more
  • ADC120-12V
    Read more

    ADC120-12V

    ADC120-12V
    The 120 Series Electric Actuator is a rotary-output, proportional servo. This electromechanical actuator is used as an engine fuel control positioning device. An internal spring provides fail-safe operation by forcing the actuator to the fuel shutoff position when the actuator is de-energized. 120 Series Universal Actuator 12/24 V DC Small, low-cost, low-friction actuator Internal spring provides fail-safe operation 1.0 lbf·ft [1.35 N·m] torque Suitable for rotary or small in-line fuel pumps on small carburetors Ideal for fuel systems on engines up to 150 hp [112 kW] Includes commercial connector with Mating Harness (CH251-2134)
    Read more
