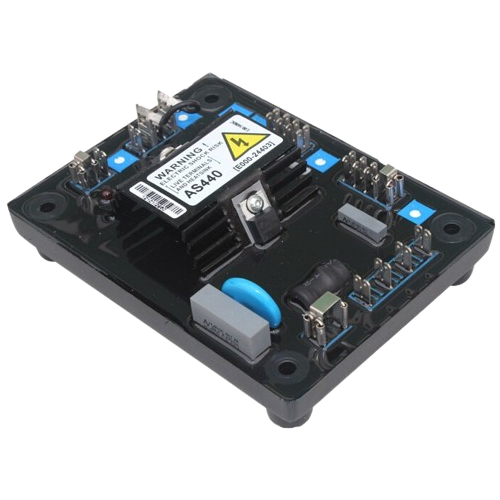

AS440

Related products

  • M31FA600A
    Read more

    M31FA600A

    M31FA600A
    The M31FA600A MEC-20 voltage regulator is suitable for synchronous generators constructed by MARELLI MOTORI from series MJB for sizes 315 to 800. The M31FA600A voltage regulator is a micro-processor device with pulse-width modulation (PWM) output stage, and can be calibrated using potentiometers. The circuit board is resin-bonded in order to maintain a high degree of operational reliability even in difficult environmental conditions (high levels of humidity, dust, a salty atmosphere) and in the presence of vibrations.
    Read more
  • MX321
    Read more

    MX321

    MX321
    The MX321TM analogue, 3-phase sensing, permanent magnet generator (PMG) powered automatic voltage regulator (AVR) provides isolation from the effects of non-linear loads, improved motor starting performance and sustained short circuit current.
    Read more
  • VR6
    Read more

    VR6

    VR6
    K65-12B Output power (with a 240Vac Input): 12 Adc 65 Vdc maximumcontinuous. 25 Adc 125 Vdc forcing for 10 seconds. AC input power: 100 to 280 Vac, single-phase 50 to 400 Hz, or 63 to 105 Vac; three phase, 50 to 400 Hz, 1092 VA maximum continuous burden AC sensing voltage: 90 to 140 Vac, 50/60 Hz; single- or three-phase. External voltage adjust rheostat: 10k ohm, 2 W, potentiometer Regulation accuracy:±0.5% Average responding Voltage drift:±1% voltage variation for a 40° C (104° F) change. Frequency compensation:1 or 2 V/Hz jumper selectable with knee adjustable from 45 Hz to 65 Hz.
    Read more
  • SX440
    Read more

    SX440

    SX440
    SX440 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator (AVR) and forms part of the excitation system for a brush-less generator.
    Read more
  • GAVR12A
    Read more

    GAVR12A

    GAVR12A
    Input Sensing voltage   180~260VAC,1 phase 2 wire Power voltage     180~260VAC,1 phase 2 wire Output      Voltage     Max. 90VDC@240VAC input Current     Continuous 4A Current     Intermittent 7A for 10SEE Resistance  Min.12Ω Max.100Ω Voltage Build-up  Residualvolts at AVR teminal>5VAC External Volts Adjustment     ±7% with 1KΩ 1 with trimmer Soft start ramp time    2sec. Unit power dissipation  Max.8 Watt EMI suppression   Internal electromagnetic interference filtering Thermal. Drift    0.03% per°C chage in AVR ambient Under freqency protection     60Hz system presets knee point at 55Hz (Factory setting) 50Hz system presets knee point at 45Hz Volts regulation  <±1%(with 4% engine governing) Environment Vibration 3G@100~2K Hz Operating temperature -40~60°C Relative humidity<95% Storage temperature -40~85°C Dimensions  12.1*9.2*6cm
    Read more
  • UVR6
    Read more

    UVR6

    UVR6
    MECC ALTE UVR6 AVR manufactured by Meccalte is a highly popular voltage regulator used on the larger Mecc Alte frames to provide optimum voltage regulation and sensing. The regulator can be used in 1 phase or 3 phase applications and 50 or 60 hz frequencies, installation is very simple but should only be installed by an experienced and certified generator technician.
    Read more
