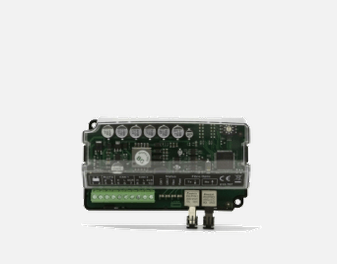

DSE124
CANbus Extender
The DSE124 CANbus extender has been designed to extend a multi-set comms load share link or engine CANbus.
OVERALL SIZE
134 mm x 77 mm x 49 mm (5.3” x 3.0” x 1.9”)
WEIGHT
0.2kg
