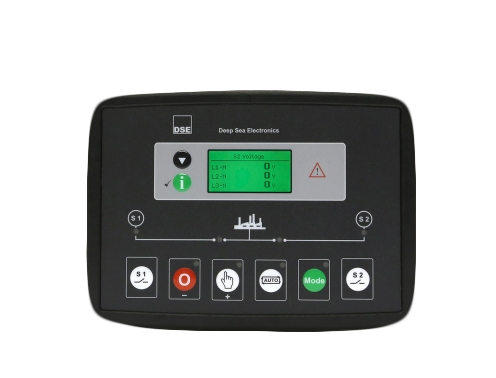

DSE334

Related products

  • DSE327
    Read more

    DSE327

    DSE327 Automatic Transfer Switch Controller
    The DSE327 is an Automatic Transfer Switch Control Module designed to monitor the voltage of an incoming AC supply from two different sources. This could be from both generator or mains (utility), or a combination of both. The module monitors S1 (Source 1) and in the event of a failure issues a start command to S2 (Source 2). The DSE327 can be ordered in 110 V and 230 V variants. Once S2 is available and producing an output within limits, the module controls the transfer device and switches the load from S1 to S2. Once the S1 supply returns to within limits, the module commands a load return to S1 and shuts down S2. Various timing sequences are available to prevent nuisance starting on minor supply breaks. OVERALL SIZE 72 mm x 90.5 mm x 65 mm (2.8” x 3.6” x 2.6”) WEIGHT 0.3 kg
    Read more
  • DSE335
    Read more

    DSE335

    DSE335 Auto Transfer Switch Control Module
    The DSE335 Automatic Transfer Switch Control Module has been expertly developed to monitor the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both. The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available. OVERALL SIZE 240 mm x 181 mm x 42 mm (9.4” x 7.1” x 1.6”) PANEL CUTOUT SIZE 220 mm x 160 mm (8.7” x 6.3”) MAXIMUM PANEL THICKNESS 8.0mm (0.3”) WEIGHT 0.9kg
    Read more
  • DSE331
    Read more

    DSE331

    DSE331 Auto Transfer Switch Control Module
    The DSE331 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both. The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available. OVERALL SIZE 180 mm x 116 mm x 42 mm (7.1” x 4.6” x 1.7”) PANEL CUTOUT SIZE 154 mm x 98 mm (6.0” x 3.9”) MAXIMUM PANEL THICKNESS 8.0mm (0.3”) WEIGHT 0.36kg
    Read more
