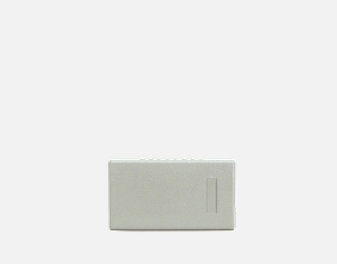

DSE815

Related products

  • DSE2157
    Read more

    DSE2157

    DSE2157 DSENet® Output (8) Expansion Module
    The DSE2157 is an output relay expansion module providing 8 additional outputs to the control system. Up to 10 x DSE2157 modules can be linked to together to provide increased output options. Designed to give greater output flexibility for meeting complex industry generator control specifications.  The module includes eight configurable relay contacts with LED indicators. These can be configured as 4 normally open and 4 normally closed. All configurations are controlled within the host control module. OVERALL SIZE 165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”) WEIGHT 0.28kg
    Read more
  • DSE2548
    Read more

    DSE2548

    DSE2548 DSENet® LED Output (8) Expansion Module
    The DSE2548 is an output expansion module that can display a maximum of eight individual LED indications. Each indication is user configurable via the host module. Up to 10 DSE2548 modules can be linked together to provide up to 80 additional LED outputs. The DSE2548 can be located up to a maximum of 1 km (0.6 mile) away from the host control module. OVERALL SIZE 180 mm x 116 mm x 43 mm (7.1” x 4.6” x 1.7”) PANEL CUTOUT SIZE 154 mm x 98 mm (6.0” x 3.9”) MAXIMUM PANEL THICKNESS 8.0mm (0.3”) WEIGHT 0.36kg
    Read more
  • DSE124
    Read more

    DSE124

    DSE124 CANbus Extender
    The DSE124 CANbus extender has been designed to extend a multi-set comms load share link or engine CANbus. OVERALL SIZE 134 mm x 77 mm x 49 mm (5.3” x 3.0” x 1.9”) WEIGHT 0.2kg
    Read more
  • DSEG0123
    Read more

    DSEG0123

    DSEG0123 Load Share Lines Interface
    The DSEG0123 Analogue Load Share Lines Interface converts DSE AMSC / MSC digital load share communications to universal analogue load share lines, allowing DSE paralleling controllers to seamlessly deliver kW and kvar load sharing with third party manufactured products. The DSEG0123 also allows the DSEG8600, DSEG8900, DSE8610 MKII, DSE8610, DSE7510 and DSE5510 controllers to be added to an existing DSE load sharing application and deliver kW and kvar load sharing across all DSE controllers within the system. The flexibility of the DSEG0123 makes expanding existing systems extremely simple. OVERALL SIZE 164.5 mm x 76.4 mm x 48.9 mm (6.48” x 3.0” x 1.93”) WEIGHT 0.2kg
    Read more
  • DSE2152
    Read more

    DSE2152

    DSE2152 DSENet® Analogue Output (6) Expansion Module
    The DSE2152 is an analogue output expansion module providing 6 additional configurable outputs to the control system.  Up to 4 x DSE2152 modules can be linked together to provide up to 24 additional output options. Designed to give  greater output flexibility for meeting complex industry generator control specifications. The 6 outputs can be configured as 0-10 V or 4-20mA.  All configurations are controlled within the host control module. OVERALL SIZE 165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”) WEIGHT 0.24kg
    Read more
  • DSE2130
    Read more

    DSE2130

    DSE2130 DSENet® Input (8) Expansion Module
    The DSE2130 is an input expansion module providing 8 additional inputs to the control module.  Four of these can be configured for use as analogue inputs.  Up to 4 x DSE2130 modules can be linked together to provide up to 32 additional inputs. Designed to give  greater flexibility for meeting complex industry generator control specifications. All configurations are controlled within the host control module. OVERALL SIZE 134 mm x 76 mm x 49 mm (5.3” x 3.0” x 1.9”) WEIGHT 0.18kg
    Read more
