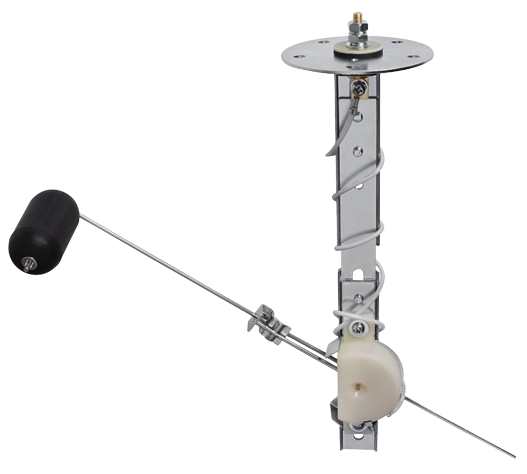

Fuel Level Floating (ลูกลอย)
Universal adjustable float sender that fits through a 38mm hole in your fuel tank.
Sender length is adjustable between 100mm – 350mm.
That gives a sender float mid point (half full tank) of 63mm and 312mm.
As supplied the sender resistance is:
-
- 240Ω Empty
- 104Ω Mid
- 32Ω Full
The float mechanisim can be inverted on the sender to reverse those values.
Sender flange diameter 70mm.
Fixing hole PCD 54mm.
Supplied with gasket, and fixing screws
